ALUMINIUM END CAPS FOR TECHNICAL INSULATION
ALU END-CAPS

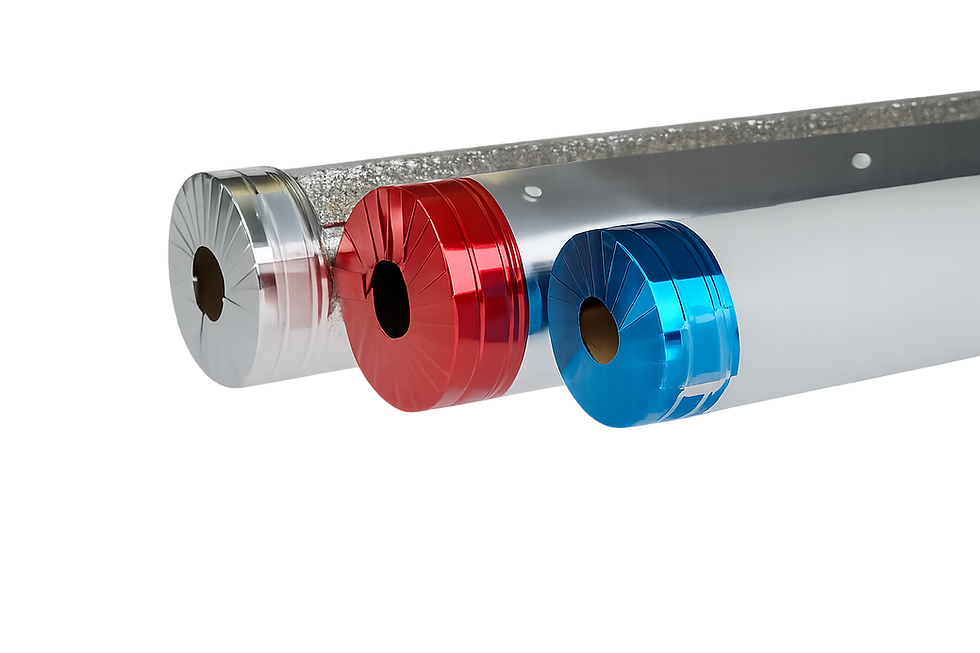

TERMINALI® aluminium end caps create a clean and consistent termination at the ends of technical pipe insulation. They cover exposed insulation edges and form a clearly defined transition between the insulated section, the outer jacketing and the adjacent pipe area.
Supplied in a practical roll format, TERMINALI® can be cut and adapted to different pipe dimensions, insulation build-ups and professional application requirements.
Multiple widths · Two roll lengths · Four available colours
Benefits of
TERMINALI®
TERMINALI® combines flexible processing, reliable aluminium properties and a broad selection of versions for professional technical insulation work.
01
Clean professional finish
Creates a clearly defined and consistent termination at the ends of technical insulation systems.
02
Flexible
Roll format
Can be cut and adapted to different pipe dimensions, insulation thicknesses and application requirements.
03
Resistant aluminium
The aluminium material is corrosion-resistant, rot-proof and resistant to fats, acids and oils.
04
Multiple available versions
Different widths, two roll lengths and five colours provide flexibility for different requirements.
Technical data
Product
TERMINALI® Aluminium End Caps
Material
Aluminium alloy 1050 H19
Material thickness
0.16 mm ± 6%
Available widths
45, 50, 55, 60, 80, 90, 100, 110, 120, 130 and 140 mm
Roll lengths
5 m and 10 m ± 5%
Available colours
Aluminium, Isogenopak Grey, Red, Blue and Black
Melting point
650°C
Material properties
corrosion-resistant; rot-proof; resistant to fats, acids and oils; gas-tight as a material; vapour-tight as a material
Gas and vapour tightness refer to the aluminium material and do not automatically describe the complete installed insulation system.
Designed for professional insulation work
TERMINALI® aluminium end caps are installed where technical pipe insulation and its outer jacketing terminate. They cover exposed insulation edges and help create a clean, consistent and professionally completed result. The roll format allows professional installers to prepare the material according to the relevant pipe dimensions, insulation thickness and project requirements. TERMINALI® is intended for distributors, insulation contractors, professional installers and industrial customers working with technical pipe insulation and suitable jacketing systems.
See TERMINALI® in action
FAST and EASY. Watch how the TERMINALI End Cap is prepared, adjusted and installed, to create a clean and professional finish on technical pipe insulation.
